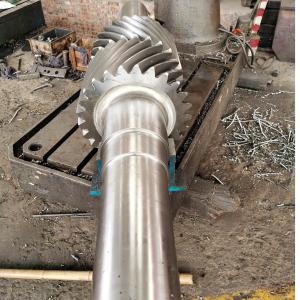

DP 1.5 25T Herringbone Double Helical Gear Shaft For Mining Equipment

Brand Name : YIZGEAR

Model Number : DB22072202

Place of Origin : CHINA

MOQ : 1 Piece

Price : $1000/ Piece

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 100 Pieces/Month

Delivery Time : 75 Days

Packaging Details : Plywood Crate

Material : 20CrNiMo

Gear Profile Type : Double Helical Gear

Heat Treatment : Quenching & Tempering

Hardness : 260-300 HB

Manufacturing Process : Gear Milling

Quality Grade : ISO 8-9

Contact Now

DP 1.5 25T Doubel Helical Gear Shaft for Mining Equipment

1) Material of doubel helcial gear

42CrMo or 40CrNiMoA steel are widely used for the double helcial gear and gear shaft.

2) Heat treatment of doubel helical gear

Double helcial gear usually only with quenching and tempering heat treatment

3) Features of double helical gear

Double helical gear with both left-hand and rignt-hand helcial gear teeth.

Products Double Helical Gear
Custom Made √
Gear Profile Type Cylindrical Gear
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding √
Module (M) 12.117
Number of Teeth (Z) 25
Pressure Angle (α) 20°
Helix Angle (β) 15°
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 260-300HB
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　
DP 1.5 25T Herringbone Double Helical Gear Shaft For Mining Equipment

DP 1.5 25T Herringbone Double Helical Gear Shaft For Mining Equipment
